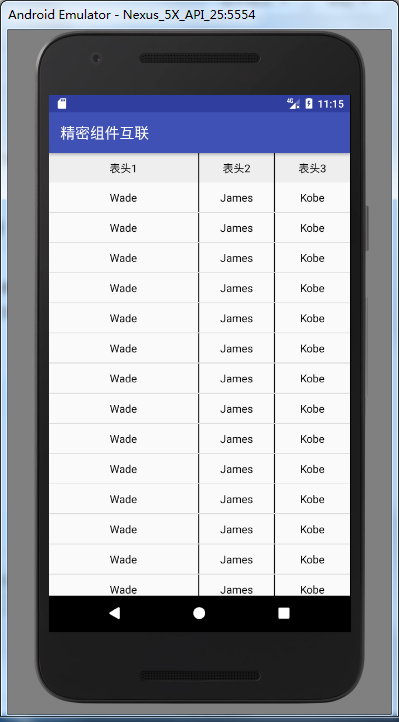

很多安卓APP中都有表格的应用，前面我也分享了一些安卓的表格框架，那些框架都是大神们封装好，迭代好几个版本的，大家不必担心不好用。对于简单表格，表格框架不能满足我们的情况，咱们就可以按照下面的方法使用RecyclerView来绘制一些我们需要的表格。先看下图效果：
使用RecyclerView来绘制Android表格
要实现上图效果，我们需要先实现布局。
上图的布局是由textview与RecyclerView组成的，代码如下：
复制
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="@color/content_bg"
android:orientation="horizontal">
<TextView
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="2"
android:gravity="center"
android:paddingBottom="10dp"
android:paddingTop="10dp"
android:singleLine="true"
android:text="表头1"
android:textColor="#000000"
android:textSize="15sp" />
<View
android:layout_width="1.5dp"
android:layout_height="match_parent"
android:background="#000000" />
<TextView
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:gravity="center"
android:paddingBottom="10dp"
android:paddingTop="10dp"
android:singleLine="true"
android:text="表头2"
android:textColor="#000000"
android:textSize="15sp" />
<View
android:layout_width="1.5dp"
android:layout_height="match_parent"
android:background="#000000" />
<TextView
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:gravity="center"
android:paddingBottom="10dp"
android:paddingTop="10dip"
android:singleLine="true"
android:text="表头3"
android:textColor="#000000"
android:textSize="15sp" />
</LinearLayout>
<android.support.v7.widget.RecyclerView
android:id="@+id/rv_sheet"
android:name="com.example.wjm19.sheetdemo"
android:layout_width="match_parent"
android:layout_height="match_parent">
</android.support.v7.widget.RecyclerView>
</LinearLayout>然后我们在RecyclerView中显示的item一行一行的数据布局是这样的
复制
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:orientation="horizontal" android:layout_width="match_parent"
android:layout_height="wrap_content">
<TextView
android:id="@+id/tv_sheetRow1"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="2"
android:gravity="center"
android:paddingBottom="10dp"
android:paddingTop="10dp"
android:text="第一列"
android:textColor="#000000"
android:textSize="15sp"
tools:ignore="Suspicious0dp" />
<View
android:layout_width="1.5dp"
android:layout_height="match_parent"
android:background="#000000" />
<TextView
android:id="@+id/tv_sheetRow2"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:gravity="center"
android:paddingBottom="10dp"
android:paddingTop="10dp"
android:text="第二列"
android:textColor="#000000"
android:textSize="15sp" />
<View
android:layout_width="1.5dp"
android:layout_height="match_parent"
android:background="#000000" />
<TextView
android:id="@+id/tv_sheetRow3"
android:layout_width="0dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:gravity="center"
android:paddingBottom="10dp"
android:paddingTop="10dip"
android:text="第三列"
android:textColor="#000000"
android:textSize="15sp" />
</LinearLayout>布局完成了，我们需要对我们的RecyclerView中每一行实现适配数据，我们可以将一行看做一个实体对象，分别存储对应数据，然后在适配器中取出对象数据，显示在item布局的textview中。首先看实体对象类
复制
public class entity {
//第一列表头
private String sheetRow1;
//第二列表头
private String sheetRow2;
//第三列表头
private String sheetRow3;
public entity(String sheetRow1, String sheetRow2, String sheetRow3) {
this.sheetRow1 = sheetRow1;
this.sheetRow2 = sheetRow2;
this.sheetRow3 = sheetRow3;
}
public String getSheetRow1() {
return sheetRow1;
}
public void setSheetRow1(String sheetRow1) {
this.sheetRow1 = sheetRow1;
}
public String getSheetRow2() {
return sheetRow2;
}
public void setSheetRow2(String sheetRow2) {
this.sheetRow2 = sheetRow2;
}
public String getSheetRow3() {
return sheetRow3;
}
public void setSheetRow3(String sheetRow3) {
this.sheetRow3 = sheetRow3;
}
}然后看数据适配器，用来为RecyclerView设置数据
复制
public class SheetAdapter extends RecyclerView.Adapter {
private List<entity> list;
public SheetAdapter(List<entity> list) {
this.list = list;
}
@Override
public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
View view = LayoutInflater.from(parent.getContext())
.inflate(R.layout.tableitem, parent, false);
return new sheetViewHolder(view);
}
@Override
public void onBindViewHolder(RecyclerView.ViewHolder holder, int position) {
sheetViewHolder vh = (sheetViewHolder) holder;
vh.getTv_sheetRow1().setText(list.get(position).getSheetRow1());
vh.getTv_sheetRow2().setText(list.get(position).getSheetRow2());
vh.getTv_sheetRow3().setText(list.get(position).getSheetRow3());
}
@Override
public int getItemCount() {
return list.size();
}
public class sheetViewHolder extends RecyclerView.ViewHolder{
public final View mView;
public final TextView tv_sheetRow1;
public final TextView tv_sheetRow2;
public final TextView tv_sheetRow3;
public sheetViewHolder(View itemView) {
super(itemView);
mView = itemView;
tv_sheetRow1 = (TextView) itemView.findViewById(R.id.tv_sheetRow1);
tv_sheetRow2 = (TextView) itemView.findViewById(R.id.tv_sheetRow2);
tv_sheetRow3 = (TextView) itemView.findViewById(R.id.tv_sheetRow3);
}
public TextView getTv_sheetRow1() {
return tv_sheetRow1;
}
public TextView getTv_sheetRow2() {
return tv_sheetRow2;
}
public TextView getTv_sheetRow3() {
return tv_sheetRow3;
}
}
}还有一个辅助类DividerItemDecoration，为功能做铺垫
复制
public class DividerItemDecoration extends RecyclerView.ItemDecoration {
private static final int[] ATTRS = new int[]{
android.R.attr.listDivider
};
public static final int HORIZONTAL_LIST = LinearLayoutManager.HORIZONTAL;
public static final int VERTICAL_LIST = LinearLayoutManager.VERTICAL;
private Drawable mDivider;
private int mOrientation;
public DividerItemDecoration(tableActivity context, int orientation) {
final TypedArray a = context.obtainStyledAttributes(ATTRS);
mDivider = a.getDrawable(0);
a.recycle();
setOrientation(orientation);
}
public void setOrientation(int orientation) {
if (orientation != HORIZONTAL_LIST && orientation != VERTICAL_LIST) {
throw new IllegalArgumentException("invalid orientation");
}
mOrientation = orientation;
}
@Override
public void onDraw(Canvas c, RecyclerView parent) {
// Log.v("recyclerview - itemdecoration", "onDraw()");
if (mOrientation == VERTICAL_LIST) {
drawVertical(c, parent);
} else {
drawHorizontal(c, parent);
}
}
public void drawVertical(Canvas c, RecyclerView parent) {
final int left = parent.getPaddingLeft();
final int right = parent.getWidth() - parent.getPaddingRight();
final int childCount = parent.getChildCount();
for (int i = 0; i < childCount; i++) {
final View child = parent.getChildAt(i);
android.support.v7.widget.RecyclerView v = new android.support.v7.widget.RecyclerView(parent.getContext());
final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
.getLayoutParams();
final int top = child.getBottom() + params.bottomMargin;
final int bottom = top + mDivider.getIntrinsicHeight();
mDivider.setBounds(left, top, right, bottom);
mDivider.draw(c);
}
}
public void drawHorizontal(Canvas c, RecyclerView parent) {
final int top = parent.getPaddingTop();
final int bottom = parent.getHeight() - parent.getPaddingBottom();
final int childCount = parent.getChildCount();
for (int i = 0; i < childCount; i++) {
final View child = parent.getChildAt(i);
final RecyclerView.LayoutParams params = (RecyclerView.LayoutParams) child
.getLayoutParams();
final int left = child.getRight() + params.rightMargin;
final int right = left + mDivider.getIntrinsicHeight();
mDivider.setBounds(left, top, right, bottom);
mDivider.draw(c);
}
}
@Override
public void getItemOffsets(Rect outRect, int itemPosition, RecyclerView parent) {
if (mOrientation == VERTICAL_LIST) {
outRect.set(0, 0, 0, mDivider.getIntrinsicHeight());
} else {
outRect.set(0, 0, mDivider.getIntrinsicWidth(), 0);
}
}
}最后，我们只需在需要使用表格的activity中使用如下代码即可显示表格
复制
List<entity> list = new ArrayList<entity>();
for (int i = 0; i < 30; i++) {
list.add(new entity("工号", "姓名", "Kobe"));
}
rv_sheet = (RecyclerView) findViewById(R.id.rv_sheet);
rv_sheet.setLayoutManager(new LinearLayoutManager(this));
rv_sheet.addItemDecoration(new DividerItemDecoration(this, DividerItemDecoration.VERTICAL_LIST));
sheetAdapter = new SheetAdapter(getdata());
rv_sheet.setAdapter(sheetAdapter);参考网友分享在CSDN上的教程，具体记不住了。
